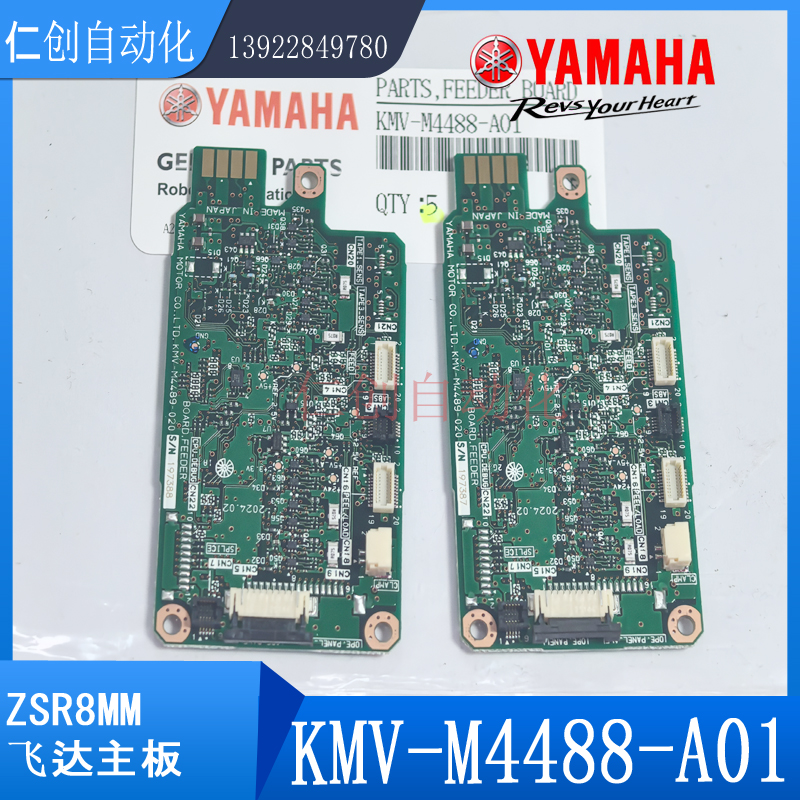

雅馬哈貼片機YAMAHA電動飛達主板ZSR8MM KMV-M4488-00 SS飛達主板KHJ-M4488-A01(老款) SS飛達主板KHJ-M4488-B01(新款) ZS款飛達主板KLJ-M4488-00
KHJ-MC1A9-00 CONNECTOR,BOARD
2 KLJ-MC1A5-00 DUMMY SPLICE SENSOR
3 KMV-MC1A5-00 SPLICE SENS.8MM
4 KLJ-MC1AA-00 SWITCH,OPERATION
5 KLJ-MC1AL-00 SW,LIMIT
6 KMV-M4488-A0 PARTS,FEEDER BOARD
7 KMV-M4664-01 ABS BOARD ASSY.
8 KMV-MC110-00 MOTOR,FEED
9 KMV-MC120-00 MOTOR,PEEL
10 KMV-MC167-00 COVER,MENBRANE
11 KMV-MC1A4-00 COVER,ABS
12 KMV-MC1A7-00 SCREW,PAN HEAD
13 KMV-MC1AJ-00 NUT,PLATE
14 90166-02JA03 SCREW, PAN HEAD
15 90166-02JA06 SCREW, PAN HEAD
16 90166-12JA06 SCREW, PAN HEAD WW
17 90990-08J020 SCREW, PAN HEAD
1KMV-MC161-00 BOX,TOP TAPE
2 KMV-MC1BE-00 SPONGE,GUARD 1
3 KMV-MC1BF-00 SPONGE,GUARD 2
4 KMV-MC1BG-00 SPONGE.GUARD 3
5 KMV-MC16X-00 T/T BOX SUB-ASSY.
6 KHJ-MC165-00 MAGNET,TAIL
7 KMV-MC16Y-S0 TOP TAPE BOX COMP.
8 KMV-MC10C-S0 SEAL,MAIN LABEL
9 KMV-MC160-S0 PARTS,TOP TAPE BOX
10 KMV-MC1A1-00 BOX,EL
11 91317-03008 BOLT,HEX.SOCKET HEAD
12 98902-03008 SCREW,BINDING HEAD
1 90200-22J035 O-RING
2 90990-37J010 WASHER,BELLEVILLE
3 KMV-MC11T-00 BOLT,LOCK S/H
4 KMV-MC132-00 SPROCKET
5KMV-MC13E-00 BOLT,GEAR DRIVEN
....
6 KMV-MC13T-00 BOLT HEX.SOCKET HEAD
7 KMV-MC13Y-00 COVER,FEED GEAR 2
8KMV-MC159-00 COVER,IDLE GEAR 2
9 KMV-MC15H-00 SHAFT,IDLE GEAR P2
10 KMV-MC15M-00 P/O ROLLER 1 ASSY.
11 KMV-MC15U-00 GEAR,IDLE P1 ASSY.
12 KMV-MC166-00 BLOCK,P/O TOOTH 1
13 KMV-MC1E0-00 D/G COMP.ASSY.
14 KMV-MC1E1-00 GEAR,IDLE F1 ASSY.
15 KMV-MC1E2-00 GEAR,IDLE F2 ASSY.
16 KMV-MC1EN-00 GUIDE,SPROCKET
17 90112-02J006 BOLT HEX,SOCKET HEAD
1 KMV-MC181-00 HANDLE
2 KMV-MC16V-00 P/O LEVER ASSY.
3 KHJ-MC106-00 PLATE,UNDER
4 KLJ-MC10W-00 FRONT BLOCK ASSY.
5 KHJ-MC107-00 SHIM,FRONT BLOCK1
6 KHJ-MC108-00 SHIM,FRONT BLOCK 2
7 KHJ-MC10G-00 SHIM,FRONT BLOCK 3
8 KHJ-MC10U-00 SHIM,FRONT BLOCK 4
9 KHJ-MC10V-00 SHIM,FRONT BLOCK 5
10 KHJ-MC109-00 SHIM,PLATE UNDER 1
..--..
11 KHJ-MC10A-00 SHIM,PLATE UNDER 2
12 KHJ-MC16E-00 SPRING,P/O LEVER
13 KMV-MC168-00 LEVER,P/O
14 KMV-MC169-00 ROLLER,P/O 2
15 KMV-MC16A-00 SHAFT.P/O LEVER 1
16 KMV-MC16B-00 SHAFT.P/O LEVER 2
17 91317-03008 BOLT HEX,SOCKET HEAD
18 98707-03006 SCREW,FLAT HEAD
19 90990-66J005 SCREW,TRUSS HEAD
18 90990-08J021 SCREW,STAD
19 98902-03008 SCREW,BINDING HEAD
20 KMV-MC10C-S0 SEAL.MAIN LABEL
